Hikvision Digital Technology

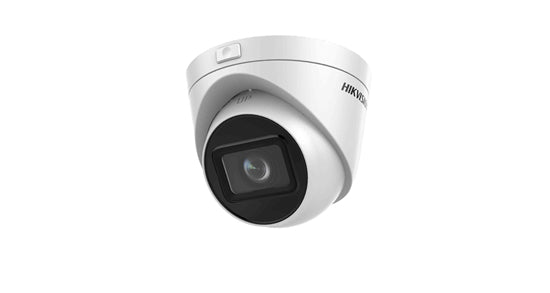

Hikvision Digital Technology DS-2CD1H23G0-IZ Capocorda Telecamera di sicurezza IP Interno e esterno 1920 x 1080 Pixel Soffitto-muro
Quantità:
Hikvision Digital Technology DS-2CD1H23G0-IZ. Tipo: Telecamera di sicurezza IP. Posizionamento supportato: Interno e esterno. Tecnologia di connessione: Cablato. Tipo di montaggio: Soffitto/muro. Colore del prodotto: Nero. Bianco. Fattore di forma: Capocorda. Illuminazione min.: 0.01 lx. Angolo di visualizzazione (orizzontale): 108.5°. Angolo di visualizzazione (verticale): 57.5°. Tipo sensore: CMOS. Dimensioni sensore ottico: 25.4 / 2.7 mm (1 / 2.7"). Lunghezza focale: 2.8 - 12 mm
Dettagli prodotto
- CMOS a scansione progressiva da 1/2,7" - 3D DNR
- 1920 × 1080@30fps - Portata IR fino a 30 m
- Obiettivo varifocale da 2,8 mm a 12 mm - IP67
- H.265+, H.265, H.264+, H.264
- Doppio flusso
Scheda tecnica
| DS-2CD1H23G0-IZ | |
| Camera | |
| Image Sensor | 1/2.7" progressive scan CMOS |
| Min Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter |
Yes |
| Auto-Iris |
No |
| Day & Night |
IR cut filter |
| Digital Noise Reduction |
3D DNR |
| WDR |
Digital WDR |
| Angle Adjustment |
Pan: 0° to 360°, Olt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Aperture | F1.6 |
| Focus | NO |
| FOV | Horizontal FOV 108.5° to 33.2°, verOcal FOV 57.5° to 18.8°, diagonal FOV 130° to 38° |
| Lens Mount | Φ14 |
| IR | |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Compression Standard | |
| Video Compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest: | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Senngs | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client sonware or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Network | |
| Network Storage | Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, heartbeat, mirror, password protecOon, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.52 |
| API | ONVIF® (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Communica[on Interface | 1 RJ45 10M/100M self-adap[ve Ethernet port |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General | |
| Operatng Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.9 A, Max: 10.5 W PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W |
| Protection Level | IP67 |
| Material | Camera body: metal, boYom base: plasOc |
| Dimensions | Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6") With package: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Camera: 560 g (1.2 lb.) With package: 850g (1.9 lb.) |
