Hikvision Digital Technology

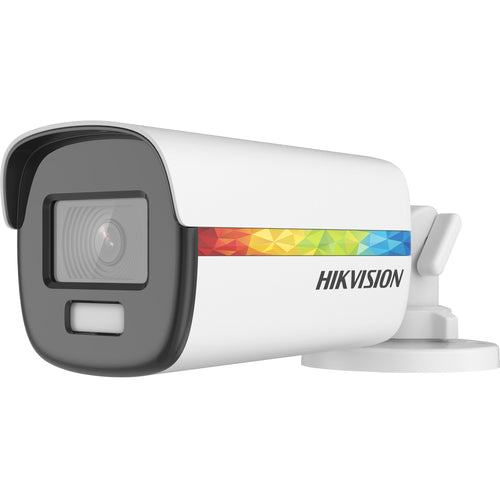

Hikvision Digital Technology DS-2CE12DF8T-F Telecamera di sicurezza CCTV Esterno
Hikvision Digital Technology DS-2CE12DF8T-F.
Tipo: Telecamera di sicurezza CCTV.
Posizionamento supportato: Esterno.
Tecnologia di connessione: Cablato Coassiale 4 Tecnologie 1
Dettagli prodotto
- Immagini di alta qualità con risoluzione di 2 MP, 1920 × 1080
- Immagini a colori 24/7
- Immagini nitide anche in condizioni di forte controluce grazie alla tecnologia 130 dB true tecnologia WDR
- La tecnologia 3D DNR offre immagini nitide e pulite
- Obiettivo a focale fissa da 3,6 mm
- Fino a 40 m di distanza in luce bianca per immagini notturne luminose
- Una porta per quattro segnali commutabili (TVI/AHD/CVI/CVBS)
- Resistente all'acqua e alla polvere (IP68
Scheda Tecnica
| DS-2CE12DF8T-F(3.6mm) | |
|
Camera |
|
|
Image Sensor |
2 MP CMOS |
|
Signal System |
PAL/NTSC |
|
Resolution |
1920 (H) × 1080 (V) |
|
Frame Rate |
TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC |
|
Min. Illumination |
0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON |
|
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
|
Slow Shutter |
Max. 16 times |
|
Lens |
2.8 mm |
|
Field of View |
horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129° |
|
Lens Mount |
M12 |
|
Light Alarm |
Solid Light Alarm (White Light) |
|
Day & Night |
Color |
|
WDR (Wide Dynamic Range) |
≥130 dB |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
|
Menu |
|
|
White Light |
Auto/Off |
|
Image Mode |
STD/HIGH-SAT/HIGHLIGHT |
|
AGC |
Yes |
|
Day/Night Mode |
Color |
|
White Balance |
Auto |
|
AE (Auto Exposure) Mode |
WDR, BLC, HLC, Global, HLS |
|
Privacy Mask |
4 programmable privacy masks |
|
Motion Detection |
4 programmable motion areas |
|
Noise Reduction |
3D DNR/2D DNR |
|
Language |
English |
|
Function |
Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Operating Conditions |
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. |
|
Consumption |
Max. 4.6 W |
|
Protection Level |
IP68 |
|
Material |
Metal |
|
White Light Range |
Up to 40 m |
|
Communication |
HIKVISION-C |
|
Dimension |
194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93") |
|
Weight |
Approx. 515 g (1.14 lb.) |
